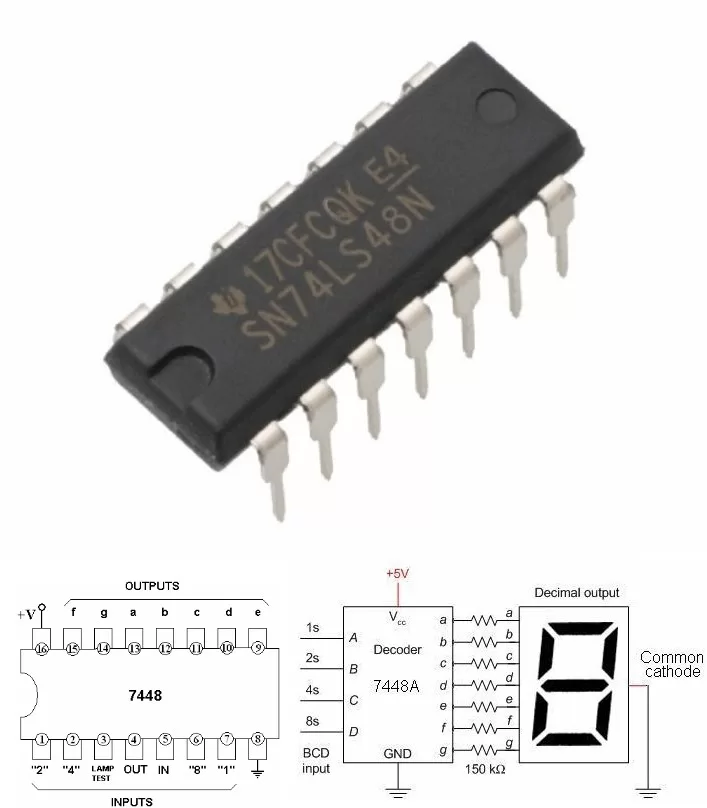

Convert BCD (Binary-Coded Decimal) inputs into seven-segment display outputs with the 7448 BCD to 7-Segment Decoder IC. This integrated circuit decodes 4-bit BCD code into the corresponding signals to drive a seven-segment LED or LCD display. Ideal for digital clocks, counters, and other applications requiring numerical displays.
Key Specifications:
- Type: BCD to seven-segment decoder IC
- Model: 7448
- Inputs: 4-bit BCD code
- Outputs: 7-segment display signals
- Applications: Digital clocks, counters, numerical displays
قم بتحويل مدخلات BCD (Binary-Coded Decimal) إلى مخرجات عرض من سبع مقاطع باستخدام 7448 BCD إلى 7-Segment Decoder IC. تقوم هذه الدائرة المتكاملة بفك تشفير كود BCD المكون من 4 بت إلى الإشارات المقابلة لتشغيل شاشة LED أو LCD من سبع مقاطع. مثالي للساعات الرقمية والعدادات والتطبيقات الأخرى التي تتطلب عروضًا رقمية.
المواصفات الرئيسية:
- النوع: IC فك التشفير من BCD إلى سبعة أجزاء
- الطراز: 7448
- المدخلات: رمز BCD 4 بت
- المخرجات: إشارات عرض 7 أجزاء
- التطبيقات: الساعات الرقمية، العدادات، العروض الرقمية
